Welded mesh types


Quality welded mesh is from good welded mesh machine . As a welded mesh machine manufacturing  specialist, let us share welded mesh knowledge with you!

Welded mesh has different types. According to its use, we can divided into the following types:

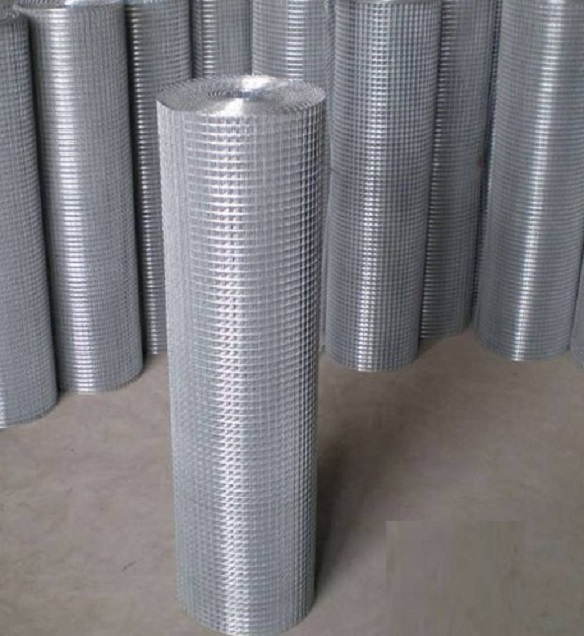

1. Hardware Cloth

The opening is from 1/8”x1/8” to 2”x2”.It can be used for bird or rodent control, machine guarding, security screening, filter media backing . It can be by rolls or by panels, depending on customer’s requirement. The material can be galvanzied wire, PVC coated wire,stainless steel wire, or bare steel.

hardware cloth

hardware cloth machine

For the wall plastering, it is usually use 0.45-0.9mm wire diameter.

For the animal cage, the wire diameter should be at least 1.2mm.

For the machine guarding, the wire diameter should be at least 1.6mm.

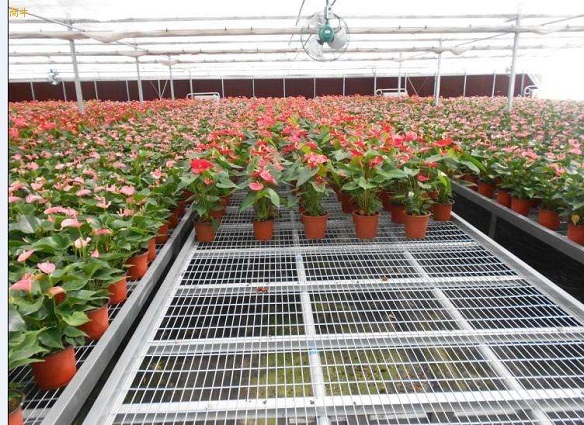

2. Welded mesh used in Agricultural .

1) Raised Gardon bed wire mesh

Usually use 3.0mm and 4.0mm wire diameter, mesh opening 120*120mm,120*125mm,


raised garden bed wire mesh

2) Welded fence

Mesh opening:12.7X76.2mm , can also be adjusted 12.5x75mm or 13*75mm.

Wire Dia :3.0-6.0mm. Mesh height:1.8m,2.0m,2.4m,2.7m,3.0m.

welded fence

3. Welded mesh used in construction .

1)Welded mesh wall concrete .

Wire Diameter:2.0-2.5mm

Mesh opening:50 X 50mm


Length :2m-6m

2)Rebar welded mesh

Wire Dia:6-12mm

Mesh opening:100*100 ,150*150mm, 200*200mm

ribbed rebar welded mesh

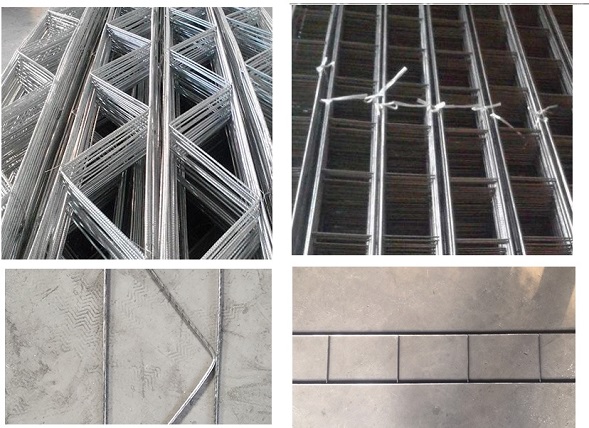

3) Brick block ladder mesh,concrete block truss mesh

Customized according to different requirement

block truss ladder mesh

4. Welded mesh used in Industry

1) Pipeline reinforing mesh

Wire dia:2.0-2.7mm

Mesh opening:25.4mm/50.8mm*67mm


Length: 125-230m/roll

pipeline reinforcing mesh

Welcome your enquiry about various types welded mesh machine!
