PRODUCT DESCRIPTION

Light weight wall panel machine can make different styles light weight wall panels by different molds.


Lightweight wall panel also called Light weight partition wall panel,it is used in constructions.

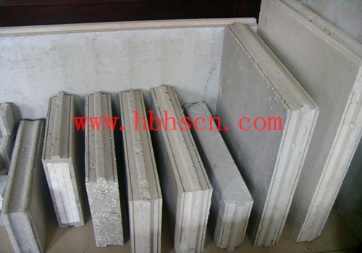

What is Light weight wall panel?

Light weight wall panel is a kind of Prefabricated panel that adopting Light weight material or Light weight structure. There are tongue, groove and joint groove on the two sides of the Light weight wall panel. Its surface density is no more than standard value (90kg/m2: 90type, 110kg/m2: 120type).

It is commonly used in Industrial and Civil Constructions' Non-bearing inner partition. And the material used should in accordance with G/T169-2005 standard.


Features of Light weight wall panel:

1.Environmental protection

2.Fire proof

3.Increase the using area

4.Moisture-proof and water-proof

5.Sound-proof

6.Heat insulation

7.Light and Economic

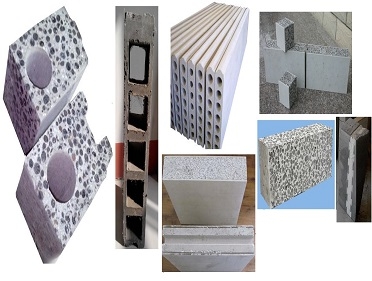

The classification and advantages of Light weight wall panel:

1.Hollow Panel

Concrete Lightweight Hollow Core Panel

Using cement as bonding material, industrial slag, fly ash, volcanic ash, poly propylene fiber, foamed perlite as material and add chemical additives then mixing them evenly. The last procedure is pouring and molding, after that we can get finished Light weight wall panel.(Length cutting should be according to project requires, and then used for buildings)

Advantages:Light weight, Fire proof and Low cost.

2.Solid Panel

Using cement as bonding material, industrial slag, fly ash, mesh fabric, foam polystyrene particles as material and add chemical additives then mixing them evenly. The last procedure is pouring and molding, after that we can get finished Light weight wall panel.(Length cutting should according to project requires, and then used for buildings)

Advantages:Light, Fire proof, can be cut, nailed and directly puttied and decorated.

Lightweight Wall Panel

3.Sandwich Panel

Using cement as bonding material, industrial slag, fly ash, waste building materials, lightweight aggregate(foam polystyrene particles, light weight ceramsite, glass beads) as material and add chemical additives then mixing them evenly. The last procedure is pouring and molding, after that we can get finished Light weight wall panel.(Length cutting should according to project requires, and then used for buildings).

Lightweight Sandwich Wall Panel

The raw material of Light weight wall panel:

1.Cement

2.Fly ash

3.Lightweight aggregate, including foamed polystyrene particles, foamed perlite, light weight ceramsite, sawdust, straw, etc.

4.Alkali-resistant fiber, mesh fabric

5.Structure skeleton

6.Additive agent


The size of Light weight wall panel:

LengthGenerally no more than 3.3 meters

Width600mm, 610mm, 1200mm

Height80mm, 90mm, 100mm, 120mm

The above size is the usual size, special size can be made according to your requirement.


Concrete block wall panel system, please refer the following link:

Light weight partition wall panel machine, please refer http://www.hbhscn.com/light-weight-partition-wall-panel-machine_p71.html

Cement EPS sandwich panel machine, please refer http://www.hbhscn.com/eps-cement-sandwich-panel-production-line_p76.html
Concrete block machine, paving brick machine, please refer http://www.hbhscn.com/concrete-block-machines_p74.html
EPS concrete sandwich panel introduction , please refer http://www.hbhscn.com/eps-concrete-sandwich-wall-panel_p75.html
Concrete block introduction , please refer http://www.hbhscn.com/concrete-block_p73.html
