Concrete Block Machines

Concrete Block Machines

Inquire Now

PRODUCT DESCRIPTION

From 1999, we start to study and develop various kind of brick and concrete block machine.

In 2011, our factory was awarded "Technological Invention Award".

In  2012, our factory was awarded the advanced units of technological innovation.


Machine feature:

  1. Mainly includes 4 system: mixing, molding, transporting, stacking.
  2. High degree of automation, multi-use of one machine, by changing the mold, it can produce different types hollow block, standard brick, pave, concrete interlocking block, multi-hole brick, curbstone etc.
  3. Adopt Hydraulic transmission, combine the mixing and forming in one machine,  production process is simple and easy operating.
  4. The core parts use anti-wearing design, long life for using.
  5. Controlled by computer, the electrical control device are all famous brands.

CONCRETE BLOCK PRODUCTION LINE

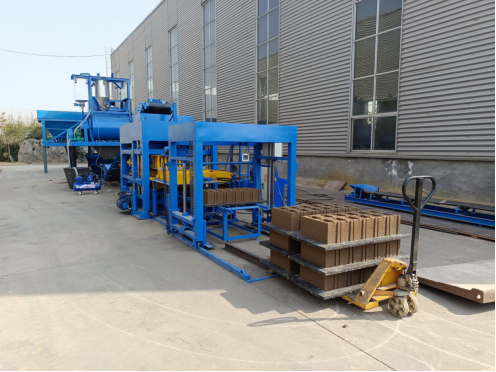

Concrete Block production line

Concrete block machine Technical data


Semi-Automatic Type

Full-automatic type

Model No.

HS-4-15

HS-5-15

HS-6-15

HS-5-15

HS-6-15

HS-8-15

HS-10-15

Main machine power(KW)

23

23

24.8

33

38

41

41

Total Weight(T)

4

5

6

6

7

9

11

Dimension(cm)

430x189

x295

398x203

x295

398x217

x295

413x193

x264

418x213

x264

525x182

x267

525x213

x267

Pallet size(cm)

94x57x3

110x57

x3

128x57

x3

118x65

X3

128x65

X3

98x85

X3

118x85

x3

Production capacity

(pc/year)

240*115*53mm

15,120

,000


18,660

,000


24,420

,000


24,480

,000


25,920

,000


30,240

,000

336,720

,000

Excitation force(KN)

68

68

68

68

68

68

68

Molding time

Second/mold

15-20


15-20


15-20


15-20


15-20


15-20


15-20


Output

General Brick

240x115

x53mm

(pcs/mold)

28

32

36

34

36

42

51

Multi-hole brick

240x115x90mm

Pcs/mold

14

14

16

16

18

21

24

Hollow bolck

390x190x190mm

Pcs/mold

4

5

6

5

6

8

10

Paving block

100x200x60mm

Pcs/mold


14

18

25

25

28

36

FAQ about  concrete block production line

1. About concrete block size and types, kindly visit our  "concrete block" .

You  use which raw materials for making concrete block?

Raw Material for concrete block

2. How can I set up a concrete block factory successfully?

Step 1: concrete block technical data

Because concrete block is usually as wall, we must guarantee qualified products to guarantee the building quality. So firstly you should confirm the concrete block technical data with civil engineer according to local national standard to guarantee the concrete block meet your local standard.

Step 2: Tell us the concrete block type and detail size that you will produce.

Step 3: Tell us the output per 8 hours that you want.


3. You will supply concrete block raw material formula for free?

Yes, we can supply. But because different countries have different resources and climate, the most effective formula must be adjustable and improved in the machine-testing period ,until your formula is most energy and money "saving, it can be defined as a good formula. So our formula is just as your reference and studying.

Some Formular for the concrete hollow block

Formular 1 Flyash 30% , clinker 30%,stone scree30%, cement 8-10%, Rock sand crystal 0.2%.(100kg/cm3 add 8% cement, 150kg/cm3 add 10% cement.)

Formular 2: Stone powder 60%, stone scree 30%, cement 8-10%, CalciumOxide 3%, ash powder0.2%.

Formular 3: River sand 60%, stone powder 30%, cement 10-15%, Mortar additive 0.5%.

Formular 4: Shale 90%, cement 8-10%,rocky sand 0.2%, Muriate0.2%.

Formular 5: Iron ore powder 60%, stone powder 30%, cement 10-15%, Rocky sand 0.2%, Muriate 0.2%,early strength agent 0.2%.

Formular 6: Flyash 60%, Slag 30%, stone scree 30%, cement 8-10%, Rock and crystal 0.2%, early strength agent 0.2%.


4. Concrete block production line includes which machines?

Mixing machine

Cement silos

Cement screw

Cement scale

Main Brick machine

Automatic stacker

Water scale

Mold

Pallet

concrete block mold

Concrete Block ,brick mold

CONCRETE BLOCK WORK SITE LAYOUT MEDIUM SIZE

Concrete brick production layout

Brick production site



Understand the production process CONCRETE BLOCK PRODUCTION VIDEO

Concrete block wall panel system, please refer the following link:

Light weight partition wall panel machine, please refer http://www.hbhscn.com/light-weight-partition-wall-panel-machine_p71.html
Cement EPS sandwich panel machine, please refer http://www.hbhscn.com/eps-cement-sandwich-panel-production-line_p76.html
Ligth weight wall panel introduction , please refer http://www.hbhscn.com/light-weight-wall-panel_p72.html
EPS concrete sandwich panel introduction , please refer http://www.hbhscn.com/eps-concrete-sandwich-wall-panel_p75.html

Concrete block introduction , please refer http://www.hbhscn.com/concrete-block_p73.html
