EPS Hot Melting Recycling Machine

EPS Hot Melting Recycling Machine

Inquire Now

PRODUCT DESCRIPTION

Why we develop EPS hot melting machine?

In recent years, recycling of waste plastic regeneration in the ascendant. EPS is widely used in the packaging industry, but it is bulky and difficult to transport. With the tenet of reducing the pollution caused by waste plastic and improving human being’s living environment, with difficulties of no domestic standard and reference data and focusing on the diversity and specialty of waste plastics, we developed the new type waste EPS melter compactor successfully and formed our own feature in the field of waste EPS EPP EPE XPS PUR EVA recycling after numerous and continuous tests and researches. In order to avoid the secondary pollution to the water and environments made by the recycling machines, we organized research personnel again to solve this technical problem and realized the upgrade of the waste plastic recycling machines with the guiding ideology of reducing secondary pollution.


Which advantage does your machine have?

This EPS hot melting machine has the advantages of high-performance, space saving, easy to transport the finished produce. The operation is pollution-free, can protect environment, and avoid the secondary pollution. It completely reuses the waste plastic and creates great interest.


How many types of EPS hot melting machine do you have?

We have three types of EPS hot melting machine.


What are their working principles and applications?

1.HS-HM100 EPS hot melting machine

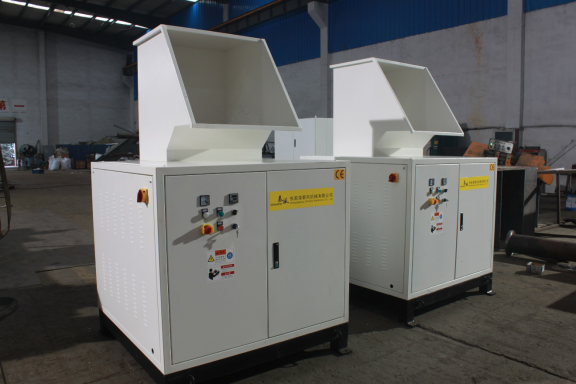

EPS hot melting machine

Working Principle

The EPS hot melting machine HS-HM100 use single shaft crushing blades, eight pieces of the blades fix on the shaft ,the blade on the blade shafts is dislocation arrangement, and the blade is evenly arranged in the axis of the knife with arithmetic point of view in the same direction.

When the crushing blades are working, after going through the cutting blade , and broken into smaller blocks of matter.

The material will been sent by the high speed rotary screw to the heating barrel. The screw of the main machine can convey and heat the material to melt condition, then extrude them and hydraulic blade cut them to pieces for easy storage and transportation.

Applications and place to use:

This EPS hot melting machine HS-HM100 can process multiple materials such as EPS EPP EPE XPS PUR EVA into small hot melted blocks. As it is small capacity one , the machine is in lower price, easy to move and machine is in a small size, especially used in super market, schools, hospitals, small-sized warehouse, retail stores, and seafood markets.


2.HS-HM200 EPS hot melting machine

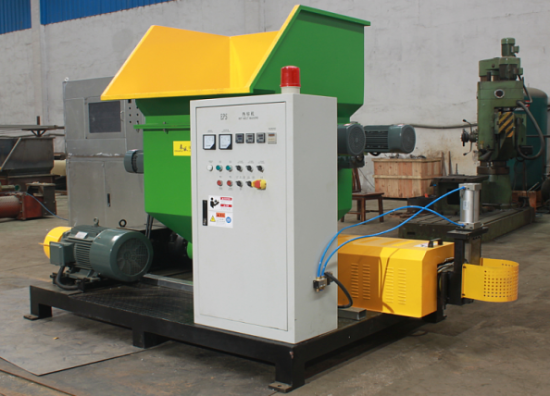

EPS foam hot melt recycling machine

Working Principle

The EPS hot melting machine HS-HM200 use two shaft crushing blades, two parallel blade shafts symmetrically fixed with blade, the blade on the two blade shafts is dislocation arrangement, and the blade of each shaft is evenly arranged in the axis of the knife with arithmetic point of view in the same direction. The first blade and the last blade of each shaft has a 90°angle。

When the two shaft crushing blades are working, two parallel blade shafts with different rotation direction begin to rotate, form a wave down the grip, so that the material constant downward movement, after going through the cutting blade, and broken into smaller blocks of matter.

The two shaft crushing blades in the EPS hot melting machine can broke the EPS material into small blacks and go through the screen. The material that can’t go through the screen will be crushed again, and finally go through the screen. The material will be sent by the high speed rotary screw to the heating barrel. The screw of the main machine can convey and heat the material to melt condition, then extrude them and hydraulic blade cut them to pieces for easy storage and transportation.

Applications and place to use:

This EPS hot melting machine HS-HM200 can process multiple materials such as EPS EPP EPE XPS PUR EVA into small hot melted blocks. It is middle capacity one for 100kg/h, especially used in middle to large sized recycling center, food market.


3.HS-HM400 EPS hot melting machine


Working Principle

The EPS hot melting machine HS-HM400 uses four shaft crushing blades, four parallel blade shafts symmetrically fixed with blade, the blade on the four blade shafts is dislocation arrangement, and the blade of each shaft is evenly arranged in the axis of the knife with arithmetic point of view in the same direction. The first blade and the last blade of each shaft has a 90° angle.

When the four shaft crushing blades are working, two parallel blade shafts with different rotation direction begin to rotate, form a wave down the grip, so that the material constant downward movement, after going through the cutting blade, and broken into smaller blocks of matter.

The four shaft crushing blades in the EPS hot melting machine can broke the EPS material into small blacks and go through the screen. The material that can’t go through the screen will be crushed again, and finally go through the screen. The material will been sent by the high speed rotary screw to the heating barrel. The screw of the main machine can convey and heat the material to melt condition, then extrude them and hydraulic blade cut them to pieces for easy storage and transportation.

Applications and place to use:

This machine can process multiple materials such as EPS EPP EPE XPS PUR EVA into small hot melted blocks. It is middle capacity one for 180-200kg/h, especially used in middle to large sized recycling center, food market.


Spare Parts List:

Some clients require belt conveyor for feeding the materials, we’ll also supply.


Belt Conveyor Parameters:


Belt conveyor for EPS hot melting machine


Which documents will be attached ?

Documentation (English version) in complete, consisting of:

1.Flow diagram giving nominal pipe diameters of the machine

2.Pneumatic system

3.El-CAD established electrical diagrams

4.Assembly drawings of the most important plant components, showing general layout characteristics such as main dimensions and operating data.

5.General operating instructions for the components (Supplier's data).

6.Repair parts list and prices

7.Operating, maintenance and repair instructions with specifications

8.Recommended to check and repair cycle


General notes:

The quality of the concrete floor where the plant is to be installed must be to a standard of B25, with a minimum hole drilling depth of 200 mm. As a rule, special foundations are not required.

Any possibly existing plant or equipment that could obstruct access to the site must be removed.

The customer supplies the raw materials and makes available all auxiliary mediums required for running the plant as required.


How long is the warranty of the EPS hot melting machine?

12 months

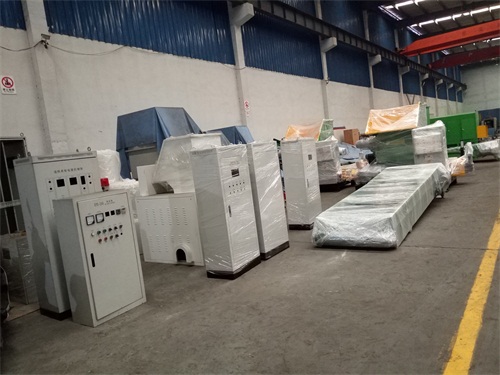

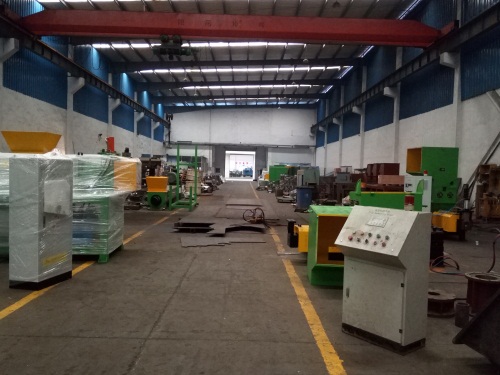

EPS hot melting machine workshop:

EPS foam hot melting machine workshop

EPS hot melt recycling machine workshop

EPS hot melt machine workshop

We  can supply NOT ONLY  EPS hot melting recycling machine, but also  EPS recycling system.
