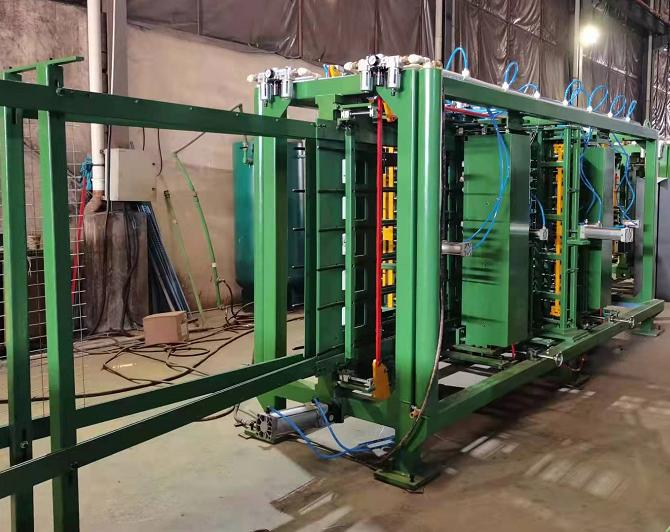

Vertical Type 3D EPS Welded Mesh Panel Machine

Vertical Type 3D EPS Welded Mesh Panel Machine

（Diagonal wire feeding from gal. Steel wire reels).

(Patent owner)

We are the patent owner of a vertical 3D panel machine. We have a professional engineer’s team and we are specialized in this field for more than 14 years old. Compared with other 3D panel machines, the vertical 3D panel machine has great advantages in both the quality of the machine itself and the panels produced. Our company has a patent for a vertical 3D panel machine.

Details

1.Straighten and cut method

If the straightness is not enough, after the wire injects into the other side, the welding holer can not hold it, which will lead to failure welding. By that time, we have to use more labor to repair the failure welding, which will add worker’s working time, the labor cost will be added.

2.Inserting strength & Precision

Because of good straightness and high precision & big powerful pushing, and there is lower -welding failure rate device at the opposite side, the welding holder easily to hold and welded the wire of back side.

3. Higher Precision and smaller interior stress of wall panel.

The height of the panel can make 3.4m. It can stand on the ground. If big internal stress, it can not.If bad quality 3D EPS PANEL, it can not stand on the ground.
