PRODUCT DESCRIPTION

Suspended platform function

1. Construction and decoration on outer wall of high building or installation of structural members.

2. Repair, maintenance and cleaning of outer wall of high building, construction , inspection , maintenance and repair of big project, such as big tank, chimney,dam bridge.

3. Welding, cleansing and painting of the large ship.

4. Fabrication and installation of the bill board at the aerial building.

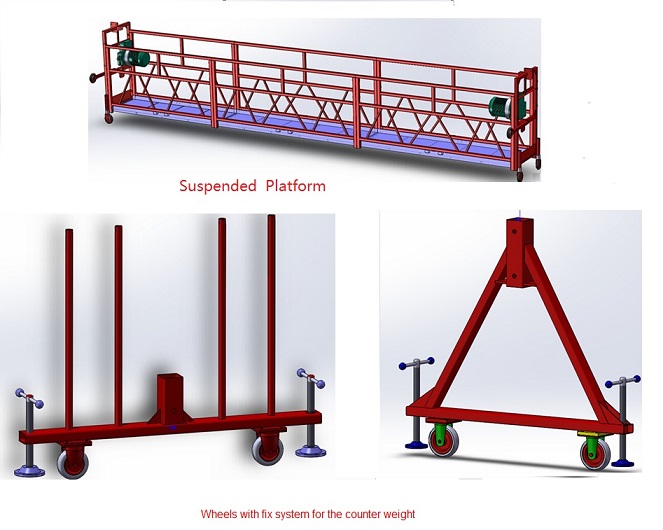

Suspended Platform

Suspended Platform with wall wheels


Main parameters for suspension platform

Model No.

ZLP500

ZLP630

ZLP800

Rated Load (kg)

500

630

800

Lifting speed(m/min)

8+/-0.5

8+/-0.5

8+/-0.5

Length of platform(m)

1-6 for free connection

1-6m for free connection

1-7.5m for free connection

Weight of platform

(kg)

251(6m)

251(6m)

251(6m)

Power of hoisting machine

0.75KW X2

1.1KW*2

1.5KW*2

Hoist Model NO.

LTD5A

LTD6.3A

LTD8A

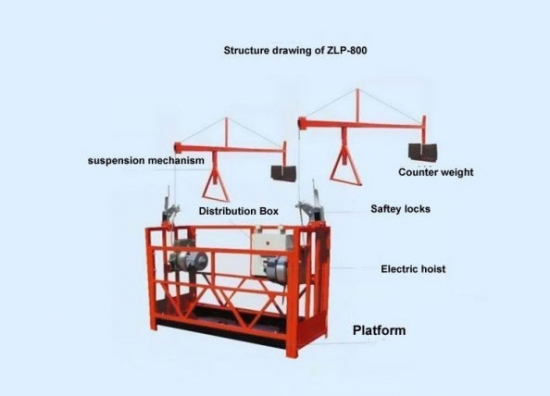

Suspended Platform Structure

How do we make suspended platform?


Suspension Mechanism

Adjustable suspension mechanism of ZLP series suspended access equipment (suspension mechanism). The height of the platform can be adjusted within arm which can be stretched out and draw back . It can be widely used parapet wall and complicated building in different height and also can be designed and fabricated additionally in accordance with various working conditions.

Suspended Platform Use

Safety Lock

Safety lock is the pivotal equipment for suspended platform. The swing-arm safety lock which avoid incline use the advanced technology and craftwork to guarantee that the suspended platform won’t happen to the downfallen danger. When the working steel wire rope ruptured or the worktable inclined, the safety lock will fasten the steel wire rope.

Model

Configuration

Allowable Load

Cable Locking Distance

Cable Locking Angle

LSG30

Anti-tilting Type

800kg

≤200mm

≤6-8°

Suspended Platform Safety Lock

Hoist

Model

LTD5A

Lifting hoisting load

500kg

Lifting speed

7-8.5m/min

Motor Power

0.75kw

Diameter of available steel wire rope

8.3mm

Self weight

40kg


Model

LTD6.3A

Lifting hoisting load

600kg

Lifting speed

7-8.5m/min

Motor Power

1.1KW

Diameter of available steel wire rope

8.3mm

Self weight

60kg


Model

LTD8A

Lifting hoisting load

800kg

Lifting speed

7-8.5m/min

Motor Power

1.5KW

Diameter of available steel wire rope

8.3mm

Self weight

67kg

Suspended Platform Hoist

Control system of electric appliance

Control system of electric appliance is made with multiple protection

devices, automatic limit, electrical leakage protection, overheat

protection, emergency braking, current overload protection,

which is reliable and very easy to operate.

Suspended Platform Electrical System

PACKING DETAILS

Suspended Platform deliverySuspended platform ExportingSuspended Platform spare parts

We also supply aluminium suspended platform ,pls write to me for details sales@hbhscn.com
