Semi Auto Steel Pipe Swaging (Reducing)Machine
PRODUCT DESCRIPTION

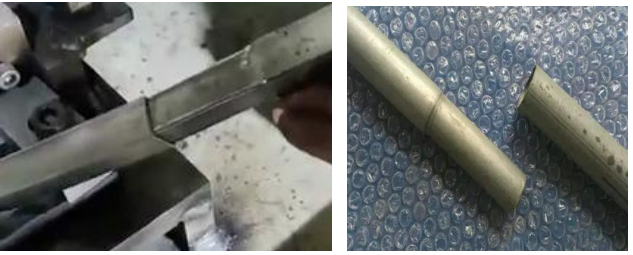

Semi Auto Steel Pipe (Tube ) Diameter Reducing Machine working processing
Semi Auto Steel Pipe (Tube) Swaging Machine Main Parameter
MODEL NO. |
DH2-R140 |
Main Motor Power |
7.5kw*1 (Special power can be customized) |
Input Power |
380v |
Oil Pump |
High Pressure vane Pump*1 |
Max Hydraulic Punching Force |
40T |
*1 |
|
Process Speed |
5.0 s/time |
Control Method |
Single control |
Oil Tube |
4 points thickened tubing |
Maximum Swage/Expand Tube Diameter |
83mm |
N.W. (kg) |
Approx 900kg |
Maximum Stroke |
250mm |
DeepThroat |
300mm |
MaxProcessingThickness |
1.8mm |
BrakingMethod |
Hydraulic |
Oil Cylinder |
140*1/125*1 |
Machine working position |
*1 |
FootSwitch |
*1 |
ControlPanel |
*1 |
Suitable Hydraulic oil |
Use 46# the Great Wall hydraulic oil /70L |
Mold Type |
swage/expand tube |
Overall Dimension |
2300*650*1400mm(Horizontal non-standard) |
Steel Pipe End Diameter Reducing & Forming Machine Main Feature
High quality hydraulic system:
1. National standard copper core three way asynchronous motor
7.5kw/380vPure copper core 3ph asynchronous motor providing powerful power for equipment, can adapt to high-intensity operation.
2. High-pressure silent vane pumps are quiet, stable ,Can work under high pressure for a long time, low maintenance rate.
3. Solenoid valve group:
the single control solenoid valve group is stable and durable, and is suitable for long time work.
4. Intelligent electric control:
The micro controller chip is used to control the circuit, and the oil cylinder stroke can be adjusted by one key, adjustable longest stroke 250mm.

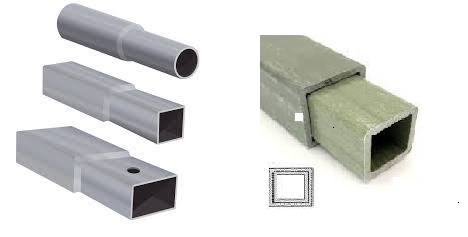

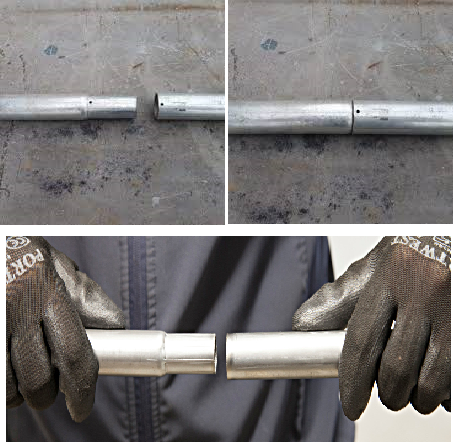

End product

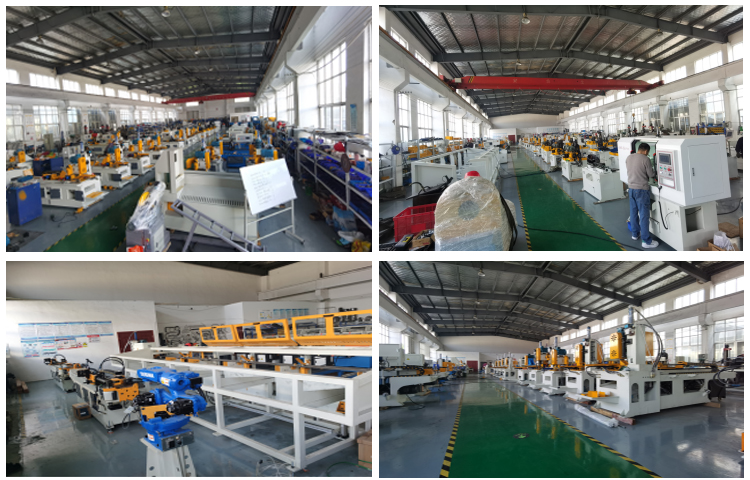

Factory pictures about Semi Auto Steel Pipe Swaging (Reducing)Machine
Semi Auto Steel Pipe Swaging (Reducing)Machine Working Video:
- Steel Pipe Swaging Machine
- Steel Tube Reducing Machine
- Semi Auto Alu Pipe Swage Machine
- Steel Pipe Diameter Reducing Machine
- Steel Tube Diameter Expanding Reducing Machine
- Steel Pipe End Reducer
