PRODUCT DESCRIPTION

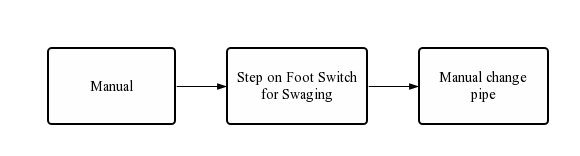

Semi Auto Steel Pipe (Tube ) Diameter Embossing Machine working processing
Semi Auto Steel Pipe (Tube) Reducing Machine Main Parameter
Main Parameter
|
MODEL NO. |
Unit |
Parameter |
|
Maximum applicable carbon steel pipe |
mm |
￠85×2.5 |
|
Maximum applicable stainless steel pipe |
mm |
￠70×2.0 |
|
Work stroke |
mm |
320（lengthen） |
|
Maximum oil pressure |
MPa |
12 |
|
Main Motor Power |
KW |
7.5 |
|
N.W. (kg) |
Kg |
1600 |
|
Overall Dimension(length*width*height） |
mm |
2800×1200×1500 |
Special size can be customized.
|
Name |
Supplier |
|
Solenoid reversing valve |
Taiwan 7OCEAN |
|
Encoder |
Japan OMRON |
|
Seals |
Taiwan DDE |
|
Proximity switch |
Japan OMRON |
|
Microcomputer control |
Changzhou XIONGHUA |
|
Machine Tool Control Transformers |
Jiuchuan |
|
AC contactor |
CHNT |
|
Thermal overload relay |
CHNT |
|
Fuse |
CHNT |
|
Power switch |
Taiwan MINGWEI |
|
Oil pump motor |
Wuxi MOSHI |
|
Oil pump |
Zhejiang HONGTAI |
|
Oil cylinder UN ring |
Taiwan SOGDZ |
|
Oil cylinder “O” ring |
Taiwan SOGDZ |
|
Hydraulic cylinder |
Self made |

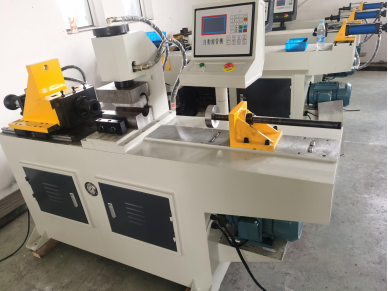

Metal Steel Pipe Taper Machine Main Feature
High quality hydraulic system：
1. National standard copper core three way asynchronous motor
7.5kw/380vPure copper core 3ph asynchronous motor providing powerful power for equipment, can adapt to high-intensity operation.
2. High-pressure silent vane pumps are quiet, stable , can work under high pressure for a long time, low maintenance rate.
3. Solenoid valve group:
the single control solenoid valve group is stable and durable, and is suitable for long time work.
4. Intelligent electric control:
The micro controller chip is used to control the circuit, and the oil cylinder stroke can be adjusted by one key, adjustable longest stroke 250mm.

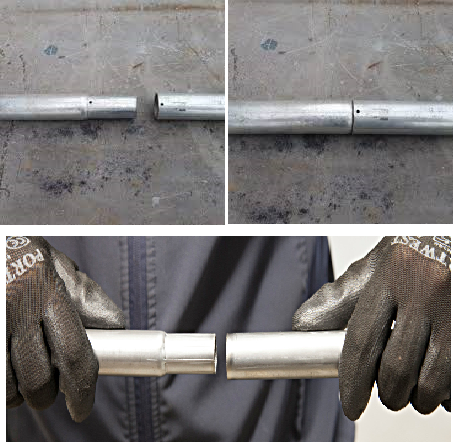

End product

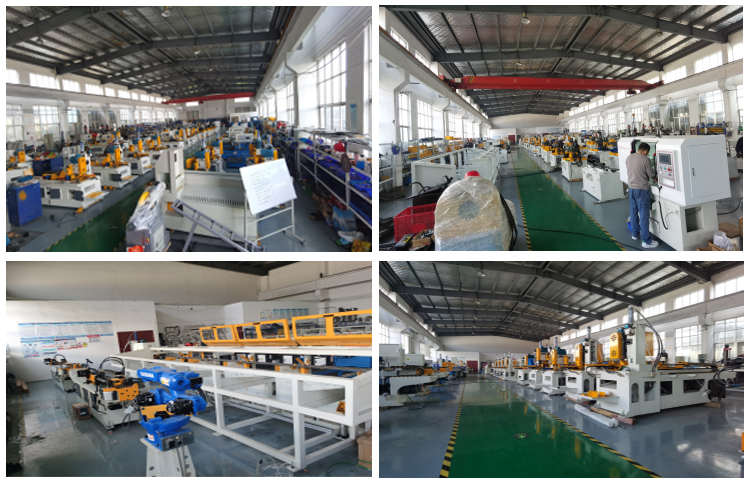

Factory pictures about Semi Auto Steel Pipe Reducing Machine

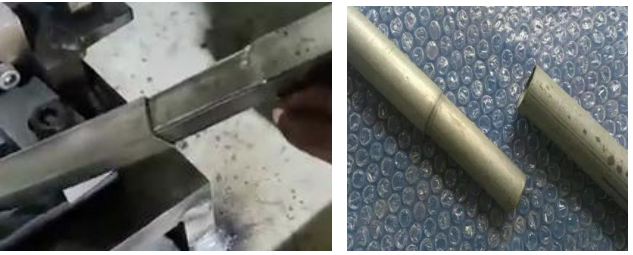

Semi Auto Steel Pipe Reducing Machine Working Video:
We will give you a quotation within 24 hours.
Product: Semi Auto Steel Pipe Reducing Machine
