PRODUCT DESCRIPTION

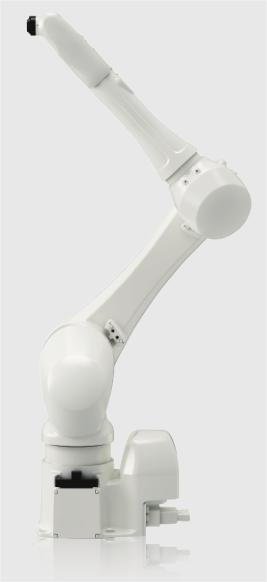

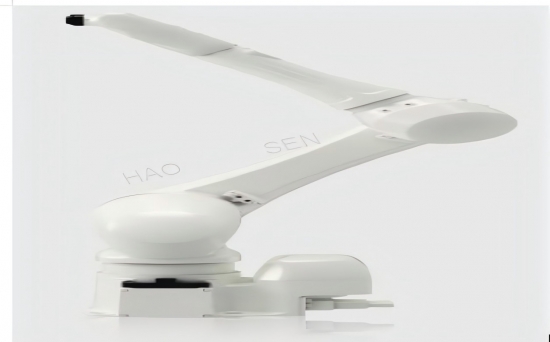

HS-LA1460-13 Robot Laser Welding
Application
Advantage
Compared with other types welding ways,the laser welding robot is a high speed and high precision welding arm.
|
Classification |
Price |
Material Requirements |
Common Use |
Flexibility |
Efficiency |
Application |
|
Automatic platform laser welding |
High |
The types of welds are simple and regular. Large product batch |
Low:Specialized for a certain type of work piece, specific weld welding |
Medium |
Very High |
It can be applied to the welding of many kinds of workpieces and slightly more complex welds. |
|
Handheld platform laser welding |
Low |
The types of welds are complex and irregular. The types of welds are complex and irregular. |
High:It can be applied to the welding of many kinds of workpieces and slightly more complex welds |
Low |
Medium |
Stainless steel small pieces and kitchen and bathroom supplies. |
|
Robot laser welding |
High |
The types of welds are complex and irregular Large product batch |
High:It can be applied to the welding of many kinds of workpieces and complex welds |
High |
High |
Automobile, auto parts, construction machinery, power battery, kitchen and bathroom supplies, cabinets and shelves, etc |
Main Parameters
|
Model |
HS-LA1460-13 |
|
|
Freedom Degree |
6 |
|
|
Max Work Radius |
1460MM |
|
|
Repeated positioning accuracy |
±0.03mm |
|
|
Wrist load |
13kg |
|
|
Motion Range |
Axis 1 |
+180°~ -180° |
|
|
Axis 2 |
+138°~- 105° |
|
|
Axis 3 |
+69°~- 225° |
|
|
Axis 4 |
+200°~- 200° |
|
|
Axis 5 |
+125°~- 125° |
|
|
Axis 6 |
+360°~- 360° |
|
Max Speed |
Axis 1 |
265°/s |
|
|
Axis 2 |
250°/s |
|
|
Axis 3 |
265°/s |
|
|
Axis 4 |
475°/s |
|
|
Axis 5 |
475°/s |
|
|
Axis 6 |
730°/s |
