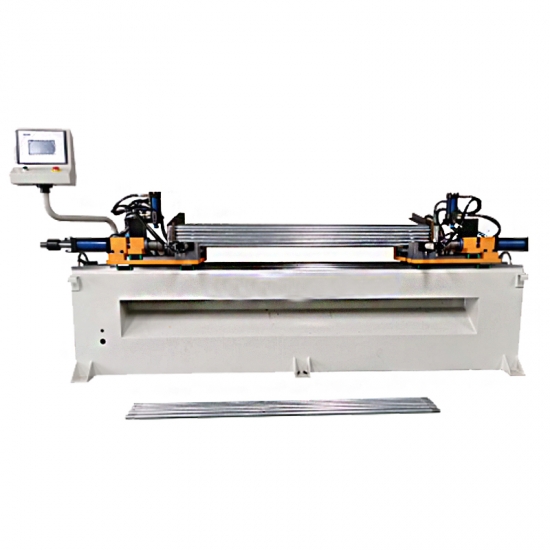

Automatic CNC Pipe Tube Swaging Machine
Automatic CNC hydraulic swaging machine is mainly used in construction sites, carports, mosquito nets, vegetable greenhouses and other manufacturing industries. It is mainly used for reducing or expanding the diameter of steel pipes, iron pipes, square pipes, round pipes, galvanized pipes and stainless steel pipes.
Auto CNC pipe swaging machines form a workpiece by forcing it into a die to reduce or increase the diameter of tubes or rods. Swaging is done by placing the tube or rod inside a die or dies that hammer together to reduce the diameter of the metal. Swaging machines do not result in the loss of material, only material deformation.So as to smoothly and precisely reach a device that requires the outer diameter of the steel pipe.
Automatic CNC Pipe Tube Reducing Machine Main Parameter
Main Parameter
|
No. |
Item |
Parameter |
|
1 |
Applicable material |
Various metal pipes |
|
2 |
Swaging Die |
Finely ground tungsten steel |
|
3 |
Applicable pipe diameter |
Φ20mm～Φ80mm |
|
4 |
Working length of swaging tube |
20mm～300mm |
|
5 |
Workpiece Length Range |
150mm～1500mm |
|
6 |
Motor Power |
7.5KW |
|
7 |
System maximum pressure |
14MPa |
|
8 |
Compressed air |
0.6——0.9Mpa 60ml/min |
|
9 |
Processing efficiency |
2-5 seconds/piece |
|
10 |
Machining tolerance |
Less than ±0.1mm |
|
11 |
Equipment weight |
2000KG |
|
12 |
Overall Dimension(length*width*height） |
length3000mm*width1200mm*height1300mm |
Configuration sheet
|
No. |
Name |
Supplier |
|
1 |
Machine head |
Custom Castings |
|
2 |
Fuselage |
Customized Welding |
|
3 |
Spindle |
Custom steel |
|
4 |
Copper sleeve |
Customized graphite copper sleeve |
|
5 |
Oil pump motor |
Jiangsu GUANSHUN |
|
6 |
Oil pump |
Zhejiang HONGTAI |
|
7 |
Oil cylinder UN ring |
Taiwan SOGDZ |
|
8 |
Oil Cylinder "O" ring |
Taiwan SOGDZ |
|
9 |
Hydraulic cylinder |
Self -made |
|
10 |
Solenoid valve |
Taiwan YUKEN |
|
11 |
Contactor |
CHNT（can be customized） |
|
12 |
Transformer |
JIUCHUAN |
|
13 |
The relay |
CHNT（can be customized） |
|
14 |
Proximity switch |
XINLING（can be customized） |
|
15 |
Thermal Protection |
CHNT（can be customized） |
|
16 |
Encoder |
CHNT（can be customized） |
|
17 |
Emergency stop switch |
Taiwan MINGWEI |
|
18 |
Electric wire |
A batch PANDA |
Auto CNC Hydraulic Shrinking Machine Main Feature
1. Specially designed loading and unloading mechanism, it is easy to change the type and save time;
2. The machine automatically completes the loading and unloading, saving labor and improving efficiency;
3. Finely ground tungsten steel shrinking die, high hardness, good finish and long life;
4. Adjustable center design, the center position can be adjusted according to product rebound to ensure accuracy;
5. Deeply optimized shrink tube design, accurate and efficient, and reduce errors;
6. Integrated button control, easy to control, greatly reducing the probability of operation errors;
7. The equipment is equipped with a three-color prompt light column, green - running; yellow - stop the cycle and wait; yellow flashing - the workpiece in the hopper is used up (minimum balance); red - error, the equipment stops. It is convenient for the operator to know the running status of the equipment at any time.

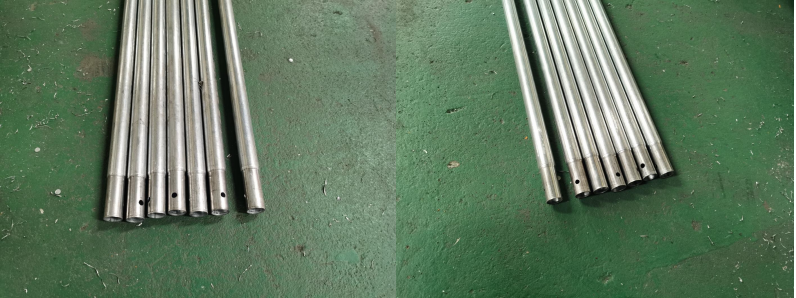

End product

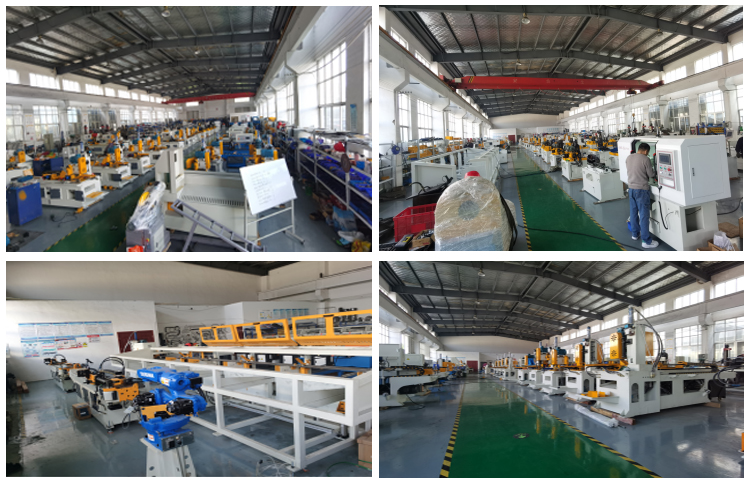

Factory Pictures About High Quality Auto CNC Hydraulic Swaging Machine
