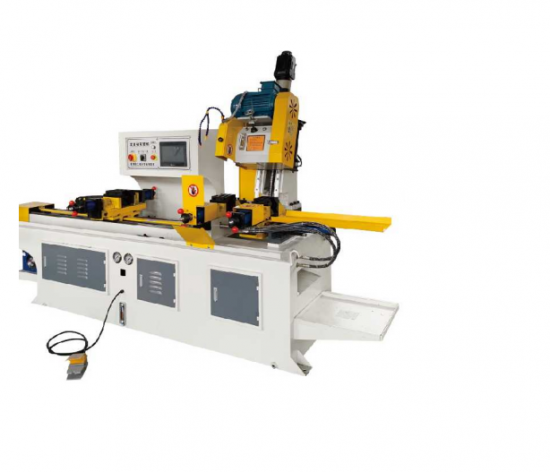

Full Automtic CNC Metal Circular Sawing Machine

Full Automtic CNC Metal Circular Sawing Machine

Inquire Now

PRODUCT DESCRIPTION

The metal circular sawing machine is a hydraulic type. The vertical slideway moves up and down the knife, the feeding structure is firm, the action is precise, and the floating material seat does not damage the surface of the workpiece. The machine has the advantages of fast speed, high precision, easy maintenance, easy operation, low noise, no dust pollution and stable quality. There are no peaks inside and outside the nozzle, which is the best equipment in the processing of lighting accessories!




Technical Parameters

Model

HSKX-350CNC

upper and lower clips

HSKX-350CNC

left and right clips

HSKX -450CNC

upper and lower clamps

HSKX-450CNC

left and right clips

Blade drive motor

3.0/4.0kw  380V/50HZ

3.0/4.0kw  380V/50HZ

3.0/4.0kw  380V/50HZ

3.0/4.0kw  380V/50HZ

Blade rotational speed

60/120RPM

60/120RPM

60/120RPM

60/120RPM

Feed stroke

1500mm/time

1500mm/time

1500mm/time

1500mm/time

Servo motor power

1000w

1000w

1000w

1000w

Pull tail strok

150mm

150mm

150mm

150mm

Clamp type

up and down

left and right

up and down

left and right

Cooling pump motor

90w

90w

90w

90w

Hydraulic pump motor

2.2kw

2.2kw

2.2kw

2.2kw

Oil working pressure

10-50kg

10-50kg

10-50kg

10-50kg

Dimension

3500x 1100x1700mm

3500 x 1100 x1700mm

3500x 1100 x1700mm

3500x 1100 x1700mm

Weight

1350kg

1350kg

1350kg

1350kg


Full Automtic CNC Metal Circular Sawing Machine  Main Feature

■Vertical slide feeding, strong structure, concentrate on processing of cutting chip, automatic lubrication, blade cooling, oil cooling.

■The machine has three sets of clamping device, the pressure size were adjustable, effectively solve the material when the clamping is not strong or deformation of the problem.

■The machine has a pull tail material function, effectively saving material length.

■The machine adopts servo drive feed, greatly improve the sawing accuracy.

■The machine adopts touch-screen input, PLC processing data, with the implementation of the components, easy to operate.

■The system has no material shutdown, fault detection and display function, easy maintenance, maintenance.

■The machine has a function of cutting out a variety of lengths.
