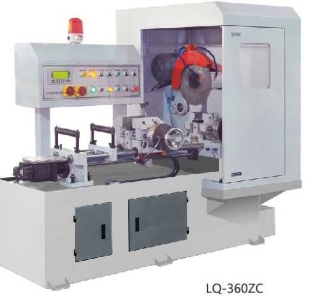

Full Automatic Aluminium Profile Cutting Machine (HSLQ-360CNC)
PRODUCT DESCRIPTION
Aluminum cutting machine is a kind of mechanical tool specially used for aluminum cutting and blanking. The automatic aluminum cutting machine is suitable for small pieces of aluminum, with large cutting volume and required precision cutting work. Small pieces of aluminum can be cut in bundles, and multiple pieces can be cut at one time, with high efficiency. Positioning and other functions are controlled by PLC to realize automatic cutting work. Tungsten steel circular saw blade is used for cutting. The speed of the saw blade is 3200 rpm, and the section of the cutting material is smooth and free of burrs. Suitable for all kinds of aluminum products manufacturing cutting accuracy requirements. Such as heat sink aluminum, U disk MP3 aluminum shell, aluminum tube, aluminum rod, aluminum alloy materials, cutting saw materials, etc.
Main parameters
MODEL |
HSLQ-360ZC |
|||
|
. |
□ I |
l=l |
O |
Saw cutting ability |
① 80mm |
110x110mm 110 x 90mm |
110×90mm |
©110mm |
Feeding length |
Continuous feeding |
|||
Feed speed |
Continuous adjustment |
|||
Host motor |
4 or 5.5kw, optional |
|||
Saw blade |
0 355mm tungsten carbide blade e 350mm high speed steel blade |
|||
Spindle speed |
2850RPM or according to order |
|||
Cooling mode |
Water cooling or oil mist cooling |
|||
Compressed air |
0.6Mpa, 2500NL/min |
|||
Machine size L x w x H |
1900x1300x1650mm |
|||
Total weight |
1200kg |

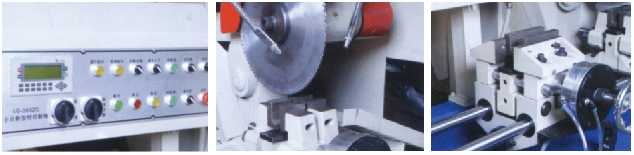

Full Automatic Aluminium Profile Cutting Machine (HSLQ-360CNC) Main Feature
■The mechanical main circuit uses imported PLC control. The operation is simple, sensitive with convenient maintenance.
■Automatic feeding, no end material adopts the imported servo motor and precise screw, cutting accuracy is high, upto ±0.03mm.
■The counter can be set to the number of processing or automatic shutdown or cumulative day of work.
■Before and after the pressure stepless adjustment,ensure the workpiece without crush deformation.
■When Processing size changing, no need to manually hardware positioning,only in the text display to change the relevant size data can work.
■For aluminum, copper, organic materials, plastic materials, such as carbon fiber has obvious effect, without burr cutting, centralized recovery after cutting of foam debris, can recycle cooling liquid, which has the advantages of high efficiency, saving time and material.
