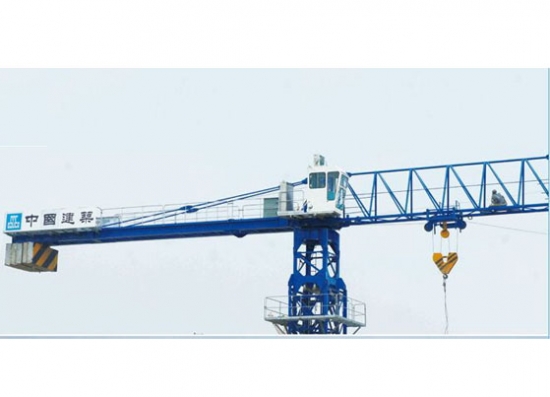

Flat Top Tower Crane

Flat Top Tower Crane

Inquire Now

PRODUCT DESCRIPTION

Advantage of Flat Top Tower Crane:

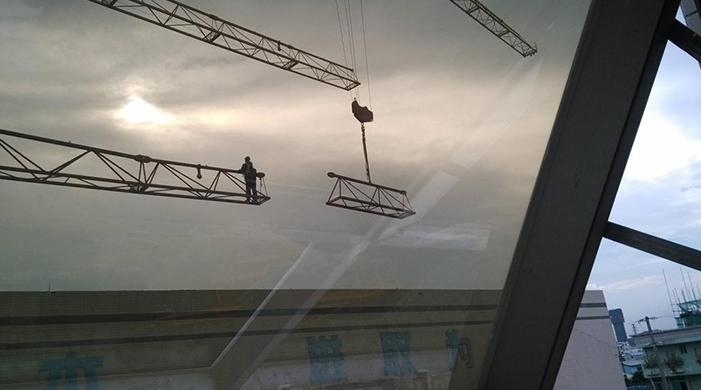

1.Jib Section:

The jib sections of our flat top tower crane feature a fast connection design. Due to  that , the jib can be assembled and disassembled in the air and requires no hammering, thus saving time, labor and space.

Flat Top Tower Crane Jib

2.Mast Sections

Our flat-top crane adopts split mast sections which consist of four stand-alone L-shaped steel trusses, characterized by that the steel trusses are connected by hinged bolts

Flat Top Tower Crane Mast Section

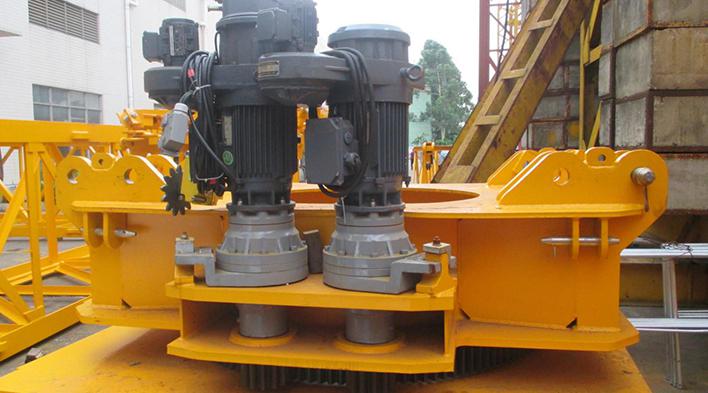

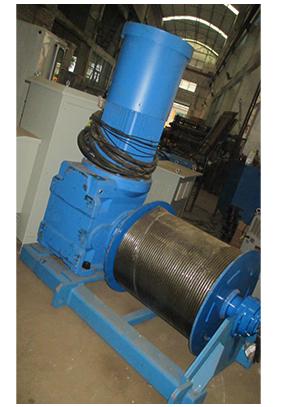

3. Reducer

 The flat top tower crane employs a combination design of German SEW high precision hardened gear reducer, all-in-one motor connected the reducer and a double Lebus-groove hoisting drum. This design ensure a compact structure and low noise. Plus closed loop variable frequency speed control, it can realize zero-speed braking, bringing no wear to friction plate of the brake.

Flat Top Tower Crane Reducer

4.Frequency Converting system The three major mechanisms of this construction crane feature variable frequency control design, ensuring smooth and shock-free star and stop, comfortable operating and dramatic extension of service life.

Flat Top Tower Crane Frequency Converting System


5.Electrical System

Our flat top tower crane comes with state of them are electrical cabinet design that is composed of frequency converter,PLC control system and heavy duty connectors. This simplified design ensure of assembly and disassembly, and avoids huge time and labor consumption caused by wrong connection during installation.

Flat Top Tower Crane Electrical System

6.Operator Cabin

The topless hoisting machinery is designed with an spacious operator cabin. Reinforced  glass ensure high safety while offering great vision. Built-in electric cabinet design is not only resistant to water and dust, but also features terrific dissipation performance.

Flat Top Tower Crane Operator Cabin

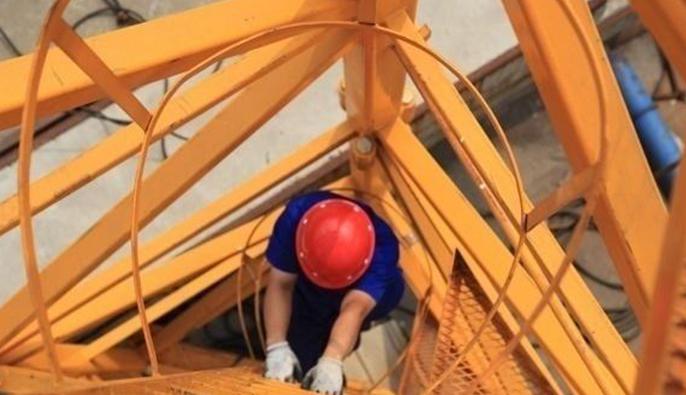

7.User-Friendly-Design

Working aisle, platform for installation and maintenance, ladder and operator cabin on the flat top tower crane come with user friendly design that will guarantee operator’s safety.

Flat Top Tower Crane Friendly-Design

8.Counter-Balance Jib

Counter-balance jib is designed to be adjustable according to the change of jib length, thus better accommodating to on-site work conditions.

Flat Top Tower Crane Counter Balance Jib



Want to know more details and price?Write to us, flat top tower crane catalogue will be sent to

 you at once!
