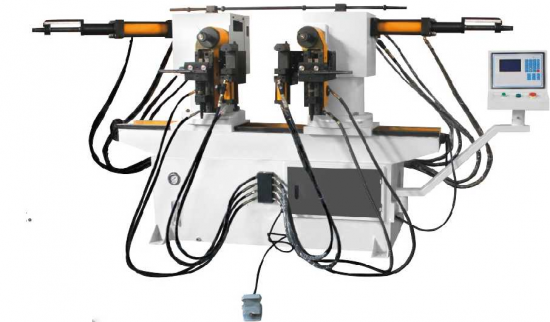

PRODUCT DESCRIPTION
Double-head pipe bending machines are mainly used in power facilities, highway and railway construction, boiler manufacturing, etc. Its functions are very complete, and its structure is also very reasonable, so it is very convenient and simple to operate.
Main parameters
|
Model |
HSSW-38 |
HSSW-50 |
|
Hydraulic motor power |
4kw |
5.5kw |
|
Max. oil pressure |
140kg/cm2 |
140kg/cm2 |
|
Max. applicable pipe (carbon steel) |
O38x1.8t |
① 50x2t |
|
Applicable bending radius |
38-200mm |
45-300mm |
|
Double bending center range |
170-1450mm |
190-1650mm |
|
Max. bending angle |
185° |
185° |
|
Max. processing capacity |
025x2 tube |
028x2 tube |
Double-head Pipe Bending Machine Main Feature
■According to the base structure of the different types of standard and rotary type
a、 Standard type: head can not be turned, double headed from the 0-90° can be arbitrary adjustment.
b、 Rotary type: head can be turned, double-head adjustable bend angle from the degree 0-185° , but must consider the problem of reclaiming.
■Adopting PLC control, easy operation, easy to maintain.
■It can be divided into the whole cycle, half cycle for the choice of operation.
■According to the size of different materials, you can choose one or more than one operation.
Standard accessories: a group of mold a group of ruler

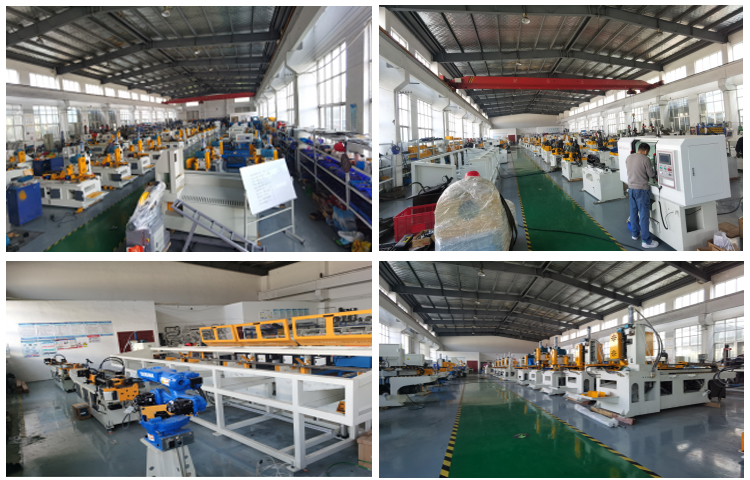

Factory pictures about Double-Head Pipe Bending Machine
