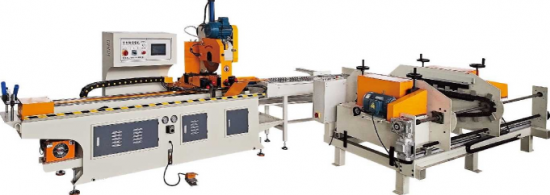

Automatic Pipe Processing Production Line (Cutting,Deburring)

Automatic Pipe Processing Production Line (Cutting,Deburring)

Inquire Now

PRODUCT DESCRIPTION

Automatic pipe cutting, automatic discharging, connected with automatic deburring machine, adopting intelligent control system to save labor and improve production efficiency.

Suitable for round pipe, oval pipe, square pipe, special-shaped pipe, single or multiple automatic cutting, deburring.

customization for user needs, automatic feeding rack optional.


Main parameters

Item

Model

Brand

Tube cutting motor

3.3KW/4KW

YBON

Oil pump motor

2.2KW

FAR EAST GROUP

Feeding Servo Motor

1KW

MITSUBISHI

Ball screw rod

32

TBL

Solenoid valve

DSD-G02-2C-DC24

Mai Jie

Speed control valve

FKC-02

Xin San Li

Oil pump

VP30DH

WALDEN

Cylinder

Made-self

Made-self

Touch screen

TK6071

Weinview

PLC controller

FX1N-32

MITSUBISHI

Contactor

CU-11

Schneider

Intermediate relay



Omron

Switching power

MES-150-24

MiWi

Servo drive

SG-30A

MITSUBISHI

Transformer

JBK160

Ouyad


Configuration parameters

Item

Parameter

Processing diameter range

Φ15mm~Φ50mm

Processing length range

Φ85mm~Φ500mm

Cutting feed speed

Max.1000mm/s

Applicable saw blades

Φ300mm~Φ500mm

Precision

±0.1mm

Cutting feed stroke

1.5m(Can be feed multiple times)

Spindle speed

70/110(fast/slow)r/min

Single room beat

3-5s/pcs


Automatic Pipe Processing Production Line (Cutting,Deburring) Working Video;
