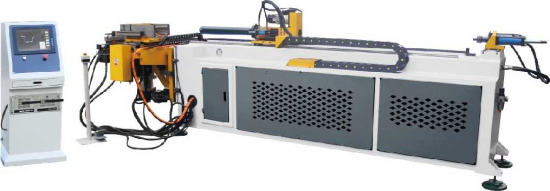

Automatic CNC Pipe Bending Machine

Automatic CNC Pipe Bending Machine

Inquire Now

PRODUCT DESCRIPTION

Automatic CNC pipe bending machine has a wide range of uses, suitable for bending iron pipes, stainless steel round pipes, square pipes and rectangular pipes, and can arbitrarily bend a certain part of the pipe into the effect you need. It is a necessary equipment for medical equipment, steel furniture, leisure furniture, office furniture, petrochemical and other industries. Made by professional and technical personnel, stable performance, intelligent chip control, fast response, high sensitivity, simple and convenient operation.




                                                                      Main parameters


Model

Unit

HSDW

-89CNC

HSDW

-114CNC

HSDW

-130CNC

HSDW

-168CNC

HSDW

-219CNC

HSDW

-273CNC

HSDW

-325CNC

Max. bending diameter and wall thickness

mm

① 90.1x6

0120.1x8

0)133.1x8

0169.1x14

0220.1x16

①275.20

0325.1x30

Max. bending radius

mm

R300

R450

R450

R600

R800

R800

R1200

Max. bending angle

o

190

190

190

190

190

190

190

Max. feeding length

mm

3000

3000

3000

3500

4000

4000

5000

Feeding mode



Straight or pinch feed

Straight or pinch feed

Straight or pinch feed

Straight or pinch feed

Straight or pinch feed

Straight or pinch feed

Straight or pinch feed

Pipe bending speed

° Is

Max 30

Max 30

Max 30

Max 30

Max 25

Max 25

Max 20

Pipe turning speed

° Is

Max 160

Max 160

Max 160

Max 160

Max 80

Max 80

Max 60

Feeding speed

mm/s

Max 800

Max 800

Max 800

Max 800

Max 600

Max 500

Max 500

Pipe bending precision

°

±0.1

±0.1

±0.1

±0.1

±0.2

±0.2

±0.2

Pipe turning precision

°

±0.1

±0.1

±0.1

±0.1

±0.1

±0.1

±0.1

Feeding precision

mm

±0.1

±0.1

±0.1

±0.1

±0.1

±0.1

±0.1

Data entering mode





1. Coordinate (X.Y.Z)

2. 2. Working value (Y.B.C)







Pipe bending mode





Servo bend: 5kw (more than three axes)

2. Hydraulic bend







Pipe turning servo motor power

kw

1.5

2

2

3

3

3

7

Feeding servo motor power

kw

2

3

3

4

5

7

11

Number of pipe bending





1. 16 pieces (PLC type)

2. 33 pieces (industrial computer type)







Storing part number





1. 1000 groups (PLC type)

2. 2 million groups (industrial computer type)







Hydraulic motor power

kw

11

22

22

30

35

35

55

Max. system pressure (adjustable)

Mpa

14

14

14

14

14

14

14

Machine weight

kg

5500

6800

7800

12000

22000

25000

38000


Automatic CNC Pipe Bending Machine Main Feature

The input pipe fittings data can be directly used to generate 3D stereo images, and can simulate the forming process of the pipes, previewing the pipes forming graphics.

It has a complete alarm function for machine failure and displays alarm information on the screen, which is convenient for operators to find and troubleshoot.


Factory pictures about Automatic CNC Pipe Bending Machine



Inquire Now

We will give you a quotation within 24 hours.

Product: Automatic CNC Pipe Bending Machine
Name: Email: * Message: *
