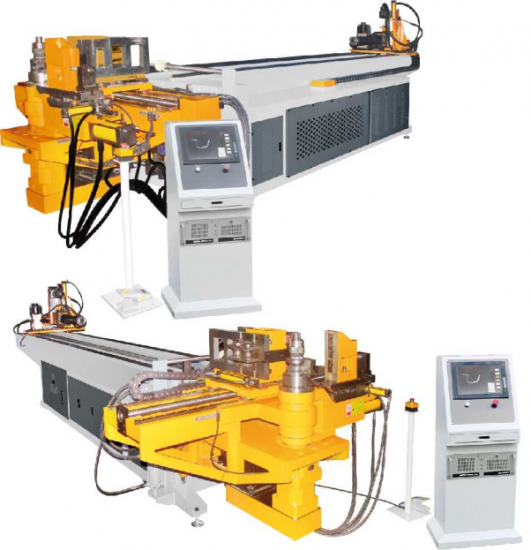

PRODUCT DESCRIPTION

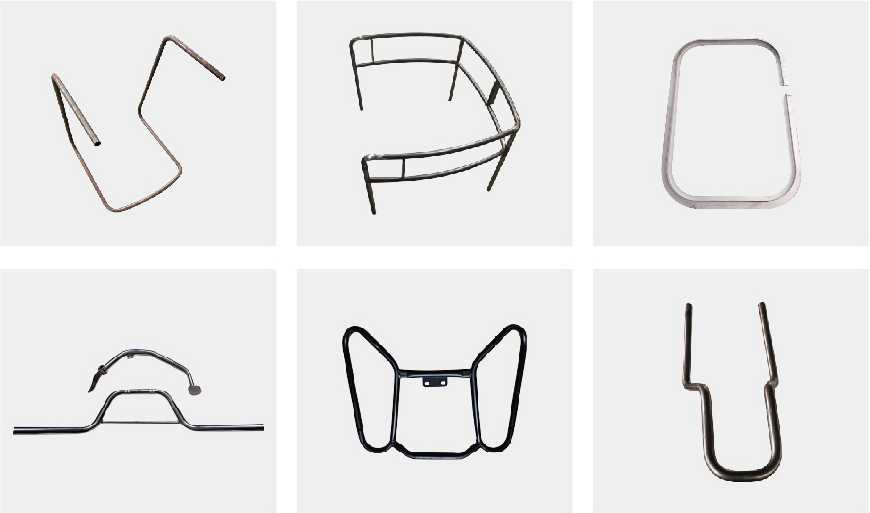

Automatic CNC pipe bending machine has a wide range of uses, suitable for bending iron pipes, stainless steel round pipes, square pipes and rectangular pipes, and can arbitrarily bend a certain part of the pipe into the effect you need. It is a necessary equipment for medical equipment, steel furniture, leisure furniture, office furniture, petrochemical and other industries. Made by professional and technical personnel, stable performance, intelligent chip control, fast response, high sensitivity, simple and convenient operation.
Main parameters
Model
Unit
HSDW-18CNC
HSDW-25CNC
HSDW-38CNC
HSDW-50CNC
HSDW-63CNC
HSDW-75CNC
Max. bending diameter and wall thickness
mm
019.1x1.2
025.1x1.5
0)39.1 x 2
051.1x3
065.1x4
076.1x4
Max. bending radius
mm
R120
R160
R180
R250
R250
R300
Max. bending angle
o
190
190
190
190
190
190
Max. feeding length
mm
1800
2000
2200
2500
3000
3000
Feeding mode
Straight or pinch feed
Straight or pinch feed
Straight or pinch feed
Straight or pinch feed
Straight or pinch feed
Straight or pinch feed
Pipe bending speed
° Is
Max 180
Max 150
Max 150
Max 85
Max 85
Max 40
Pipe turning speed
° Is
Max 200
Max 200
Max 200
Max 200
Max 200
Max 160
Feeding speed
mm/s
Max 1000
Max 1000
Max 1000
Max 1000
Max 1000
Max 800
Pipe bending precision
°
±0.1
±0.1
±0.1
±0.1
±0.1
±0.1
Pipe turning precision
°
±0.1
±0.1
±0.1
±0.1
±0.1
±0.1
Feeding precision
mm
±0.1
±0.1
±0.1
±0.1
±0.1
±0.1
Data entering mode
Pipe bending mode
Servo bend：1kw
Servo bend：2kw
Servo bend:
3kw
Pipe turning servo motor power
kw
0.2
0.4
0.75
0.75
0.75
1
Feeding servo motor power
kw
0.4
0.75
1
1.5
1.5
1.5
Number of pipe bending
Storing part number
Hydraulic motor power
kw
4
4
5.5
5.5
7.5
Max. system pressure (adjustable)
Mpa
10
12
12
12
12
12
Machine weight
kg
1200
1300
1500
2500
3000
4500
Automatic CNC Pipe Bending Machine Main Feature
The input pipe fittings data can be directly used to generate 3D stereo images, and can simulate the forming process of the pipes, previewing the pipes forming graphics.
It has a complete alarm function for machine failure and displays alarm information on the screen, which is convenient for operators to find and troubleshoot.

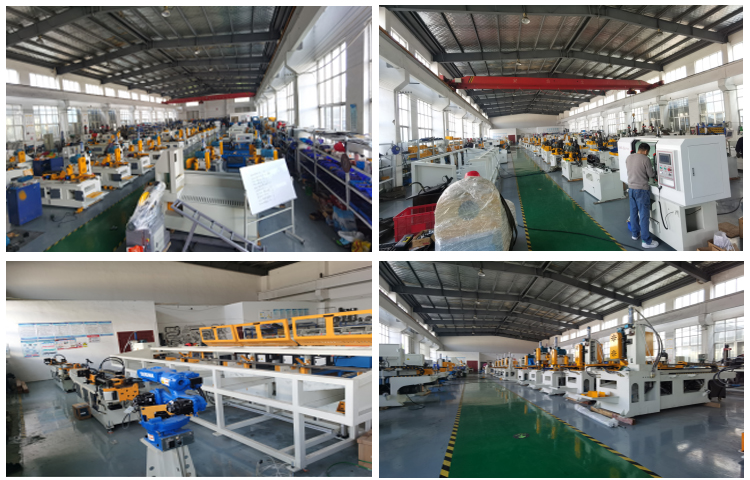

Factory pictures about Automatic CNC Pipe Bending Machine
We will give you a quotation within 24 hours.
Product: Automatic CNC Pipe Bending Machine
