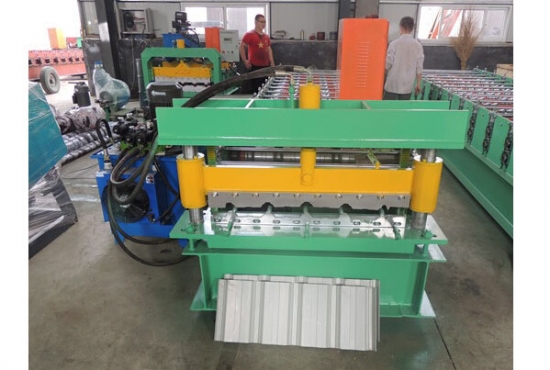

Wall & Roof Panel Steel Roll Forming Machine

Wall & Roof Panel Steel Roll Forming Machine

Inquire Now

PRODUCT DESCRIPTION

Specifications for steel roll forming roof and wall panel

 Cover width

 Coil width   Wave heigh t   Wave length  Usage

840/1050

1000/1200 30 280 Roof and wall panel

850

1000 12 65 Roof and wall panel

860

1000 21 215 Roof and wall panel

910

1000 7 131   Roof and wall panel

900

1000 15 225 Roof and wall panel

Steel roll forming machine includes:

Decoiler

Steel roll forming machine

Electric controlling cabinet

Cutting system

Hydraulic pump station

Run out table


Steel roll forming machine parameters for roof and wall panel

Dimension(mm) :L X W X H 6400 x 1300 x 1000

Forming Axle: Diameter 70mm, 45# steel

Forming wheel: 45# steel hammering

Driving mold: chain and sprocket

Motor:3kw

Roll forming rows:11

Length set & cut  full automatically by computer

Hydraulic station motor: 3KW grade 4

Cutting mold:Gr12

Forming speed:8-10mm/min

Thickness for roll forming:0.2-0.7mm

Width for roll forming machine :1000mm

Special size can be made according to customer’s requirement.

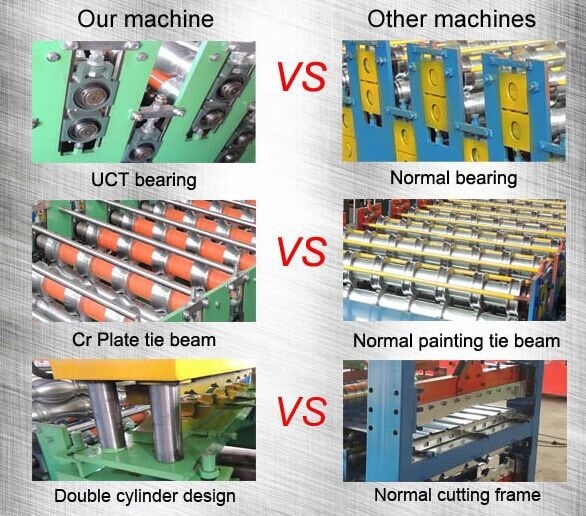

Our roll forming machine has which advantage?


Reference

C-section roll forming machine, please refer http://www.hbhscn.com/c-section-steel-roll-forming-machine_p34.html
Floor deck roll forming machine, please refer http://www.hbhscn.com/floor-deck-machine_p36.html
Glazed tile roll forming machine, please refer http://www.hbhscn.com/glaze-roof-tile-steel-roll-forming-machine_p37.html
Down pipe roll fomring machine, please refer http://www.hbhscn.com/down-pipe-roll-forming-machine_p42.html
EPS/color steel sandwich panel machine, please refer http://www.hbhscn.com/eps-color-steel-sandwich-panel-machine_p30.html


Video

Down pipe roll forming machine working video, kindly refer https://www.youtube.com/watch?v=X3-uh4mqUKw

Steel roll forming machine working video, kindly refer https://www.youtube.com/watch?v=u1BDsKoR5yc
Special steel roll forming machine working video, kindly refer https://www.youtube.com/watch?v=37pFkoyKPcc
