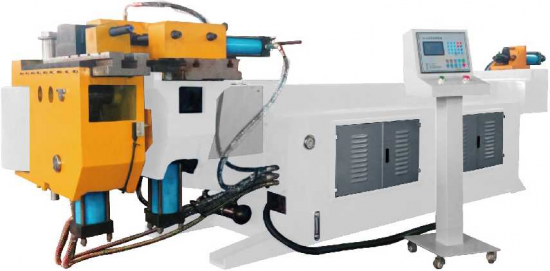

Single Head Hydraulic Pipe Bending Machine
PRODUCT DESCRIPTION
Single Head Hydraulic pipe bending machine is economical and can carry the core pulling function, can bend thin-walled pipes, and then put through the mandrel and add anti-wrinkle film. The versatility is relatively strong and the operation is simple.
Main parameters
Model |
Unit |
HSDW-114NC |
HSDW-130NC |
HSDW-168NC |
HSDW--219NC |
HSDW--273NC |
HSDW-325NC |
Max. bending diameter, wall thickness |
mm |
0114x8 |
0130x8 |
©168x14 |
0)219x16 |
0273x20 |
©325x30 |
Max. bending radius |
mm |
R520 |
R520 |
R750 |
R800 |
R1000 |
R1200 |
Min. bending radius |
mm |
RN1.5D |
RM5D |
RN1.5D |
RN1.5D |
RN1.5D |
RN1.5D |
Max. bending angle |
° |
190 |
190 |
190 |
190 |
190 |
190 |
Standard core length |
mm |
4500 |
4500 |
5000 |
6000 |
7000 |
8000 |
Control system |
|
Microcomputer control |
Microcomputer control |
Microcomputer control |
Microcomputer control |
Microcomputer control |
Microcomputer control |
Number of pipe bending |
pcs |
16 |
16 |
16 |
16 |
16 |
16 |
Can store part number |
set |
16x16 |
16x16 |
16x16 |
16x16 |
16x16 |
16x16 |
Oil-pressure motor power |
kw |
22 |
22 |
22 |
30 |
35 |
40 |
Max. system pressure |
Mpa |
14 |
14 |
16 |
16 |
16 |
16 |
Hydraulic system control |
|
Solenoid valve |
Solenoid valve |
Solenoid valve |
Solenoid valve |
Solenoid valve |
Solenoid valve |
Fuel tank volume |
L |
350 |
400 |
650 |
800 |
1000 |
1200 |
Machine dimension |
mm |
5700x1300x1600 |
5700x1600x1300 |
7100x1800x1500 |
8800x2450x1980 |
9000 x 2500 x 2000 |
10000 x 2800 x 2500 |
Machine weight |
kg |
7000 |
8000 |
12000 |
20000 |
22000 |
36000 |
Single Head Hydraulic Pipe Bending Machine Main Feature
■ Machine is beautiful and delicate,and provides the space for the biggest bending pipe.
■ Adopting single chip microcomputer control, easy to operate.
■ The angle of bending uses encoder tracking and give a feedback with a high bending precision.
■ Storaging of multiple sets of processing mode,flexible switching between different specifications.
■ With automatic counting and power-off memory function.
Equipped with hydraulic cooling sy.

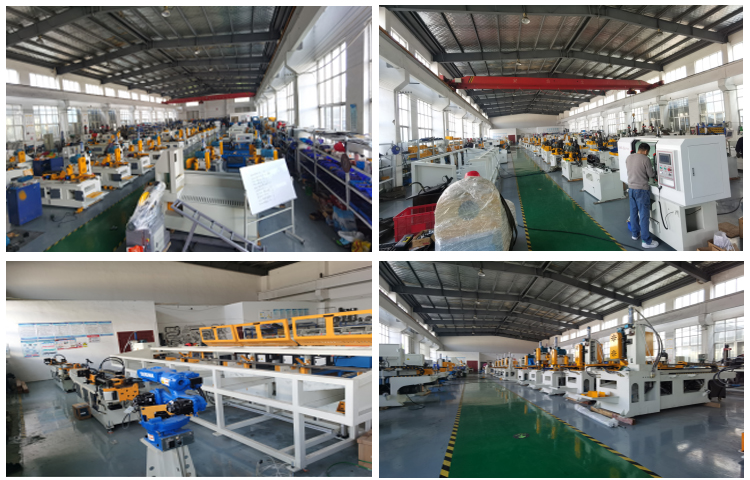

Factory pictures about Single Head Hydraulic Pipe Bending Machine
We will give you a quotation within 24 hours.
Product: Single Head Hydraulic Pipe Bending Machine
