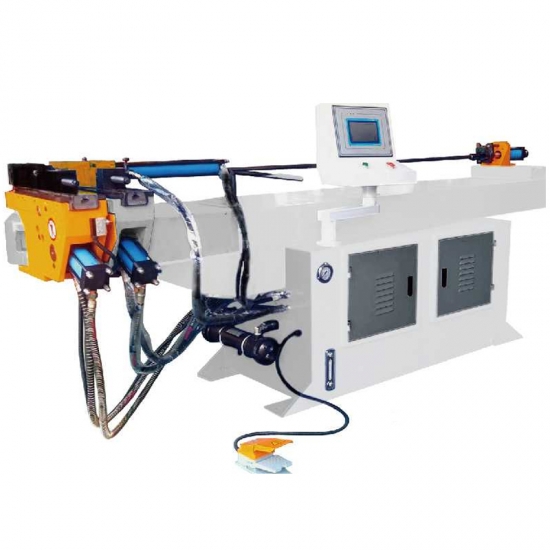

Single Head Hydraulic Pipe Bending Machine
PRODUCT DESCRIPTION
Singel head hydraulic pipe bending machine is economical and can carry the core pulling function, can bend thin-walled pipes, and then put through the mandrel and add anti-wrinkle film. The versatility is relatively strong and the operation is simple.
Main parameters
Model |
Unit |
HSDW-38NC |
HSDW-50NC |
HSDW-63NC |
HSDW-75NC |
HSDW-89NC |
Max. bending diameter, wall thickness |
mm |
038x2 |
0)50x3 |
063x4 |
075x4 |
089x6 |
Max. bending radius |
mm |
R260 |
R350 |
R350 |
R400 |
R450 |
Min. bending radius |
mm |
RN1.5D |
RN1.5D |
RN1.5D |
RN1.5D |
RN1.5D |
Max. bending angle |
° |
190 |
190 |
190 |
190 |
190 |
Standard core length |
mm |
1600 |
2200 |
2600 |
2800 |
3500 |
Control system |
|
Microcomputer control |
Microcomputer control |
Microcomputer control |
Microcomputer control |
Microcomputer control |
Number of pipe bending |
pcs |
16 |
16 |
16 |
16 |
16 |
Can store part number |
set |
16x16 |
16x16 |
16x16 |
16x16 |
16x16 |
Oil-pressure motor power |
kw |
4 |
5.5 |
5.5 |
7.5 |
11 |
Max. system pressure |
Mpa |
12 |
12 |
12 |
12 |
14 |
Hydraulic system control |
|
solenoid valve |
solenoid valve |
solenoid valve |
solenoid valve |
solenoid valve |
Fuel tank volume |
L |
110 |
150 |
220 |
250 |
260 |
Machine dimension |
mm |
2600 x 600x1000 |
3000 x 700x1000 |
3200 x 750x1100 |
4000x1000x1100 |
4320x1300x1200 |
Machine weight |
kg |
750 |
1220 |
1500 |
2000 |
3500 |
Single Head Hydraulic Pipe Bending Machine Main Feature
High performance medium-sized pipe bending machine is controlled by NC with multigroup procedures and multi-angles setting. It will make you operate and set more easily. It is widely used in larger standard products, E.G. exhaust pipe, seat, bumper, all steel furniture and etc.
Factory pictures about Single Head Hydraulic Pipe Bending Machine
